Overview


U-Lock U-Light is the bicycle accessory combined with a lock system, and the multiple LED lights. U-Lock U-Light enhances visibility and awareness for riding safely at night. I worked as a co-researcher and co-designer of the U-Lock U-Light. The project is a result of the Product Design class at ITP, New York University.




Team
Elizabeth Ferguson
Jaekook Han
Sandy Hsieh
Timothy Lobiak


Role
UI & Interaction Design

Conduct interviews
Create a persona
Conduct user-tests
Prototyping


Tool
Sketch

Illustrator
ProtoPie
After Effects







︎︎︎    Mobile Controller UI    ︎︎︎








Mobile Controller

User Interface


After finished the team project, I designed the user interface of the mobile controller for the U-Lock U-Light. I wanted to give the riders control the light during the riding. The app connects to the lock with Bluetooth and has three main functions: dimmer, strobe, and changing light color.














︎︎︎     U-Lock U-Light Product Design    ︎︎︎








U-Lock U-Light
UX Research

The project started from the topic Biking under the theme Urban Mobility. Before starts the research, we brainstormed what we know about biking and make a provocation to narrow down the subject. We found out our boldes provocation, which was “Biking is optimal for the worst weather conditions”. And brainstormed the fresh idea that were

  • Rental system for weather-protective biking clothes
  • Wearable with a built-in heating and cooling system
  • Interchangeable Bike Parts















Interview &

Observation


Based on that, we externalized our research. We had observed and met the people who ride a bike regularly and interviewed them to empathize and define a problem. We got feedbacks and had three insights.

Gloves:
Important when biking long distances and in inclement weather

Safety:
Unable to communicate with cars and unsafe nighttime riding

Accessories:
There are already a lot of accessories for biking







Affinity Mapping


We organized an affinity mapping based on observation and interviews. And selecting three opportunities:

  • There is an opportunity to provide bicyclists with gloves that work for other activities, too
  • There is an opportunity to give bicyclists and car drivers communication tools to empathize and coordinate with each other
  • There is an opportunity to provide the bicyclists with tools or a wearable that assists in regulating body temperature and allows for versatility

From that, we choose one opportunity through 2x2 Matrix which is

“There is an opportunity to provide bicyclists and car drivers with communication tools to empathize and coordinate with each other.”











Storyboards



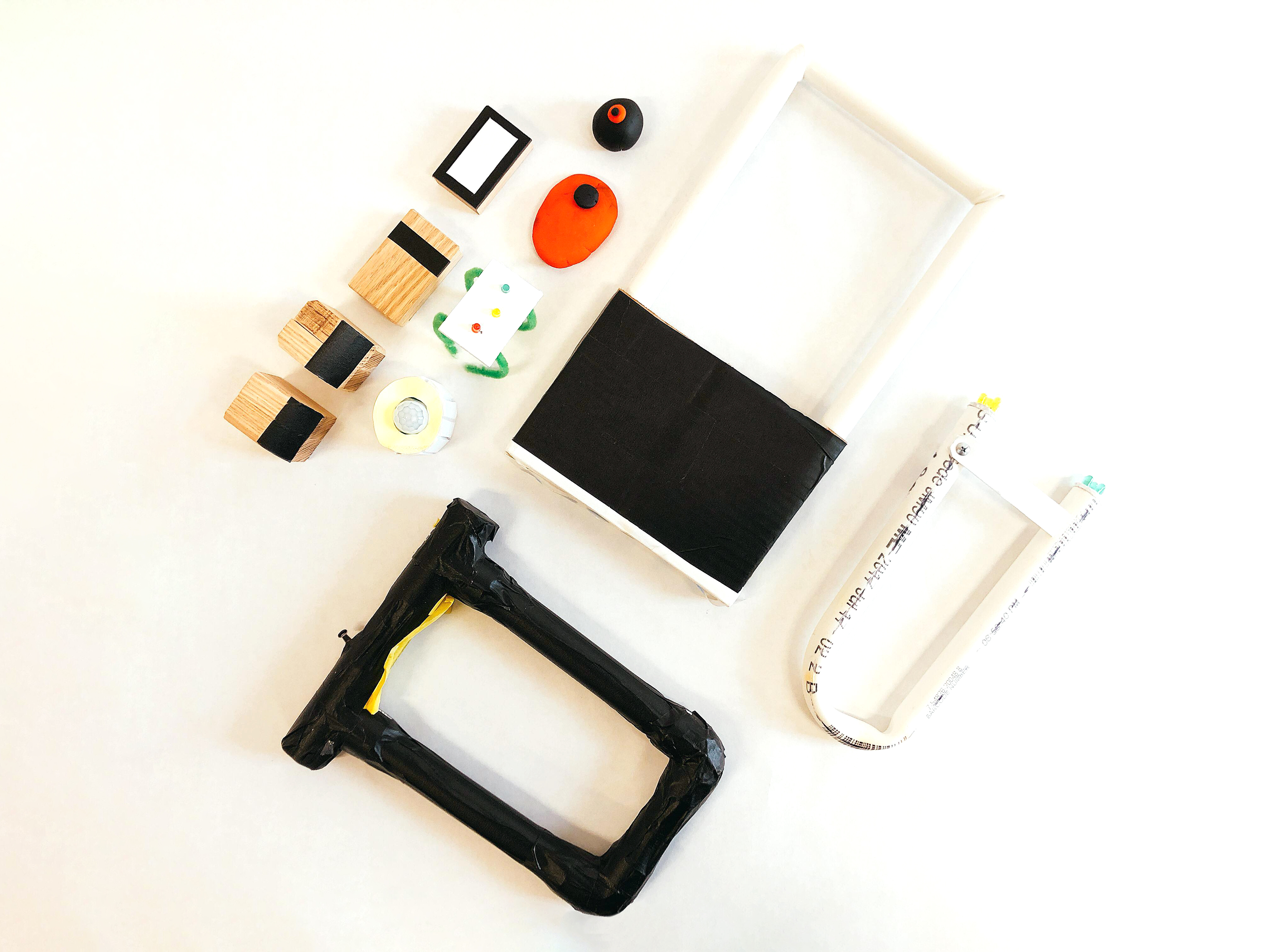

Rough Prototype



User Test















Final Prototype

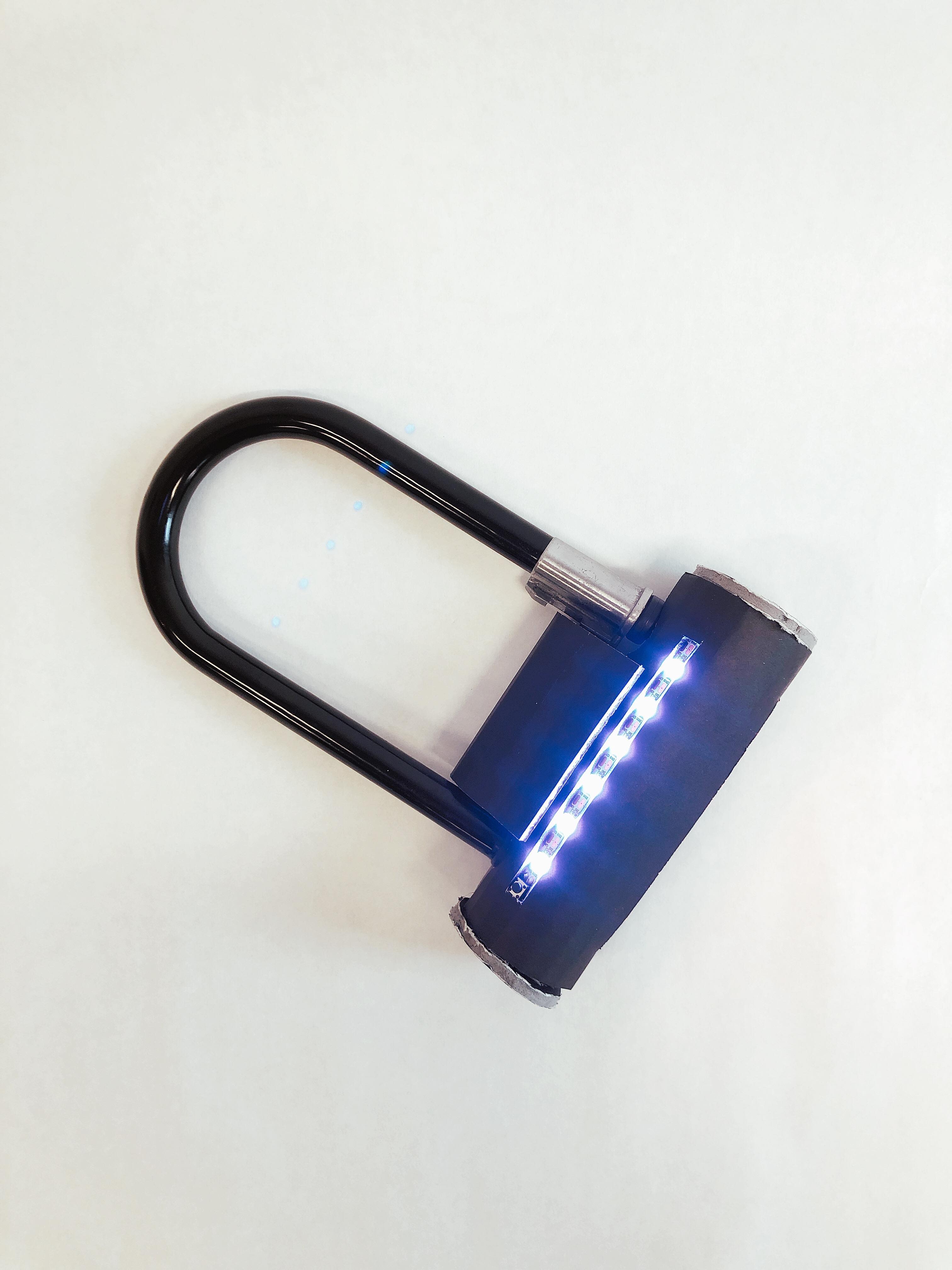

We finalized our design based on the user test and made a final prototype with cardboard and the LED.
